This project has been stalled for the last year or so but now it is nearing completion. Like many projects on a budget, things progress slowly. It is owned by our Marketing Manager Ben Bryce and was used to design our Triangulated 4-Link. Ben has owned the car for roughly 15 years and primarily just cruiesd it on weekends. Ben has absolutely zero experience autocrossing but is ready to get behind the wheel after watching the rest of the guys have their turn.


Here is what it looked like 3 years ago when it came into the shop.







Here are some basic specs on the build at this point.

1966 Ford Mustang Code: 65A Stock Coupe
All Modification, Upgrades, Installation and Fabrications Done By GO Customs inOntario Ca.
Motor: 289 Small Block 4.7 Liter V8- Automatic
Holley: 650 4 Barrel Carburetor
Doug Headers: Small Block Ford
Magnaflow Exhaust: Custom 2 .5” XPipe Dual Exhaust with Tips. Designed to Go To The Original Exhaust Outlets
OPTIMA Battery: Yellow Top Dry
SoCal Bolt: ARP Studs
Milodon: Racing Oil Pan
Old Air Product: A/C: Air Con Pulley& Mounting Brackets
EMJ: Stainless Brake Lines Kit
Champion Aluminum Radiator, Built in TransCooler, Over Flow Tank & Electric Fan
Inland Driveline: Drive Line
Transmission: C-4 Original Upgraded:New Oil, Gaskets and Filter

Valve Covers: SpectrePerformance
Dress Up Kit: Spectre Performance
Cold Air Box: Spectre Performance
Air Cleaner: K&N Filters


Front Suspension Upgrades:
TCI Engineering: Front Custom IFS Cross member & Control Arm
TCI Engineering: Power Rack & Pinion Steering & Briand Hose Kit
TCI Engineering: 2” Drop Spindle
Front RideTech Double Adjustable 400lb. Coil-Overs
Front Willwood Brakes 13" Drilled Slotted & Vented Rotors with 6Piston Black Calipers
Charlotte Rod & Custom Sure Shield Body Dampener Coating
Queen City Components: Under The Dash Air Conditioning Unit
Stang-Aholics Motor Hood Molding, Motor Accessories and More
Front Track Width: Wheel Hub to Wheel Hub: 57.5”

Rear Suspension Upgrades:
TCI Engineering: Rear 4-Link Suspension Custom IFS Cross member & ControlArm
TCI Engineering: Braided Hose Kit
EMJ: Stainless Brake Hard Lines Kit
Original Rear End Housing 8” and 31 Splines
Currie Enterprises: Gears: Posi Tru Track - Gears: Ratio 325
Rear RideTech Single Adjustable 250lb. Coil-Overs
Rear Willwood Brakes 12" Drilled Slotted & Vented Rotors with 4 PistonBlack Calipers
Rear Track Width: Wheel Hub to Wheel Hub: 57.75”

Interior Original: Black
Upgrades:
Retro Sounds: Radio Head Unit
Retro Sounds: Surround Sound
Retro Sounds: Amp & Bass Unit
Stang-Aholics: Hump Hugger
Ididit Tilt Steering Column
Borgeson U-joint Steering Kit
Queen City Components: Under The Dash Air Conditioning Unit
GO Customs: Rear Seat Fire Wall Install

Wheels
2010 Ford Mustang – Stock Setup F&R 18”x 8”
F&R Wheels: Backspacing: 5.75”
Rear Wheel Setup has a 1” Billet Spacer
Wheels Are Same Size For Rotation Capabilities

Tires:
Falkens: Azenis RT615K 245/40/18
Wheels N Motion: Wheels & Tires: Mounting and Balancing -

Intake Manifold – Stock
Convertor – Stock
Cams – Stock
Preform RPM Engine Kit – Stock
Transmission – Stock

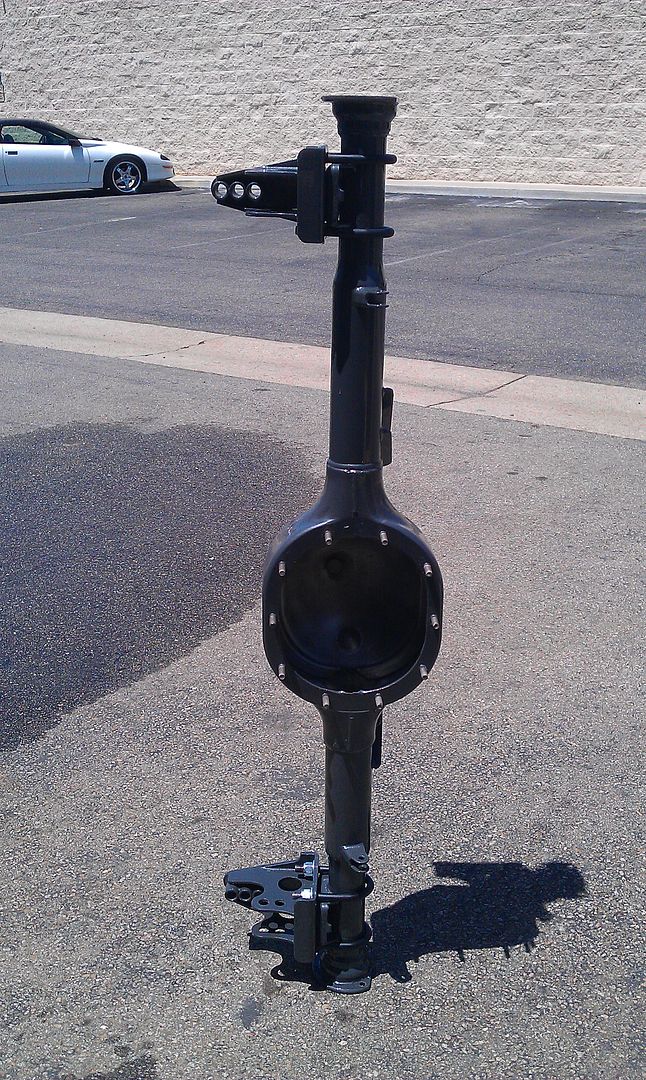

The stock 8" rearend getting freshened up. He used the bolt-on 4-Link brackets that come with the kit.

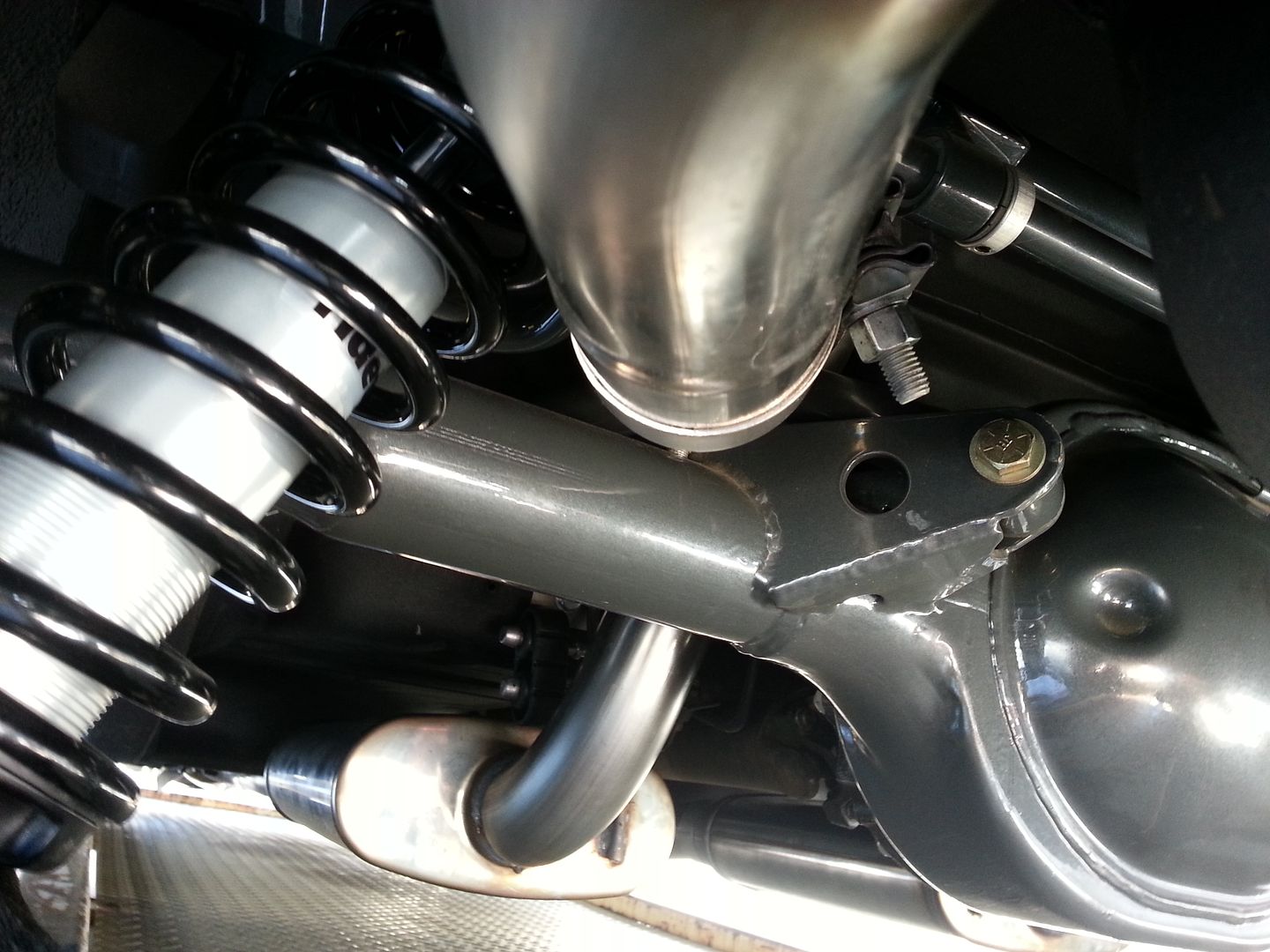

Once we were finished designing the Triangulated 4-Link all the pre-production parts were removed in favor of powdercoated production pieces. (No brakes just yet)










Installation of our Custom IFS.









Can't have an Autocross car without good brakes so the budget was balanced accordingly




Unfortunately, Ben had to dip into the engine build money to do the big brakes so all he did here was a basic refresh.



Ben lucked out when Magnaflow showed interest in building a production exhaust for the car.












More budget pieces. Through extensive research and test fitting Ben decided on running late model(2010+) Mustang wheels. He paid $200 for all four and the front back space is perfect. However, he had to run 1" spacers in the back. He is happy that he can rotate them though.

200 Treadwear to comply with most of our sanctioning bodies



245/40/18 Falken 615K's all the way around


-J


·
Vendor
Joined
·
460 Posts
Discussion Starter #2
The car is drivable under its own power but he still has a few small bugs to work out with the engine. We will be scaling and aligning it tomorrow. Sal will tune at some point this week but I doubt it will see any actual dyno time.













Track tests will begin very soon.

-J


·
Registered
Joined
·
1,464 Posts
interesting exercise. I dont see any sub-frame connectors or did I miss them.
I wish i had a friend named Magnaflow:(

Exactly which "late model" itteration are the wheels from?


·
Vendor
Joined
·
460 Posts
Discussion Starter #4
interesting exercise. I dont see any sub-frame connectors or did I miss them.
I wish i had a friend named Magnaflow:(

Exactly which "late model" itteration are the wheels from?

You are correct, there are no subframe connectors on the car. Wasn't a conscious decision to exclude them just haven't got around to it yet.

The wheels are from the 2010+ model GT.

Got her all cleaned up yesterday and took a couple pics.







-J


·
Registered
Joined
·
1,104 Posts
Is that actual ride height in the photos? Doesn't seem like there is much room to turn the tires with wheel travel but it might just be the way it looks.


·
Registered
Joined
·
132 Posts
I'm not even that low and I rub. Trying to decide what to do to solve it. Do those tires rub?


·
Vendor
Joined
·
460 Posts
Discussion Starter #7
Is that actual ride height in the photos? Doesn't seem like there is much room to turn the tires with wheel travel but it might just be the way it looks.



The guys in the shop aligned/scaled it yesterday. The lower control arms were angled up slightly ^^in those pics so we made a few turns on the coil-overs which brought it up about a 1/2 inch.

-J


·
Registered
Joined
·
1,104 Posts
Are you allowing for full bump with the wheels locked? It still seems tight to me but I could be wrong.


·
Vendor
Joined
·
460 Posts
Discussion Starter #9
Are you allowing for full bump with the wheels locked? It still seems tight to me but I could be wrong.
It's definitely tight but that's how Ben likes it. :cheers:

On a serious note, they will still rub at full compression/lock. He's got a bunch of tire on the front of that car at that height so he'll just have to raise it if it ever became an issue. The crazy thing is he could actually get away with another 1/4" of backspace. Pretty tough to find a 8" wheel with 6" of backspace though, especially on a budget.

-J
